Create a Triggered Noise Gate Effect in Logic

Jul 30th in Logic Pro, Production by West Latta

The use of Gate Effects has become increasingly prevalant in today's music scene. Typically used for supressing noise, gates are also useful creative tools for creating choppy, glitch effects. In this tutorial, we'll show you how to create a triggered noise gate effect in Logic Pro (though the principles would be the same in any DAW).

Author: West Latta

Westlee Brent Latta has been making strange noises for over 30 years. West has spent the last several years developing his craft in the game industry as composer, sound designer, and integration specialist. He is currently a Sound Supervisor for Microsoft Game Studios/Soundelux DMG.

Software and Equipment Used

For this tutorial, we'll be using Logic Pro, and the Logic Noise Gate plug-in. The Play Pack for this tutorial also includes several freeware noise gate plugins: Autogate (PC), and Floorfish (PC, Mac OS X as VST and AudioUnits).

Step 1

Firstly, we'll need to choose a sound that is relatively sustained. Pads, long vocal lines, and slowly moving leads are all good choices here. This will be the sound that we'll be gating in later steps. For this tutorial, I've chosen an ES2 pad.

es2pad.mp3

Step 2

Next we'll select a sound to act as the trigger for our gate. There are numerous ways of triggering a noise gate, but generally speaking you'll want something that is rhythmic, percussive and has high transients, so that the gate can be triggered quickly.

For this tutorial, we've chosen a loop from Logic's loop library, and applied some bit-crushing FX to give it some flavor.

triggerloop.mp3

Step 3

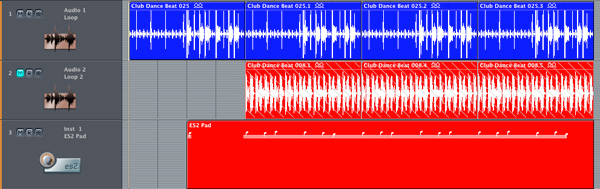

Now that we have our core ingredients, let's start arranging. We'll place our loop on Audio Track 1, and this will act as our trigger for the Noise Gate plugin.

Our pad is placed on the first Audio Instrument Track.

Step 4

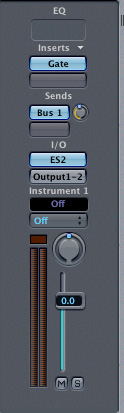

Next we'll insert the Noise Gate plugin on the first insert of the Pad instrument track.

Step 5

The Noise Gate plugin will require some tweaks to get it to trigger the way we want. First we'll select 'Track 1' from the Side Chain drop down menu. This will force the plugin to use the drumloop as the trigger for opening and closing the gate.

We'll set our Threshold to a relatively low number. This will take some tweaking, but for this example, I've found that -35dB seems to give us the effect we're after. We'll set the Hysteresis slider to -2dB. This slider, along with the Threshold, combine to give you a lot of control over the final effect. They can increase or decrease the amount of 'chatter' (quick opening and closing of the gate). You'll want to spend some time experimenting here.

Step 6

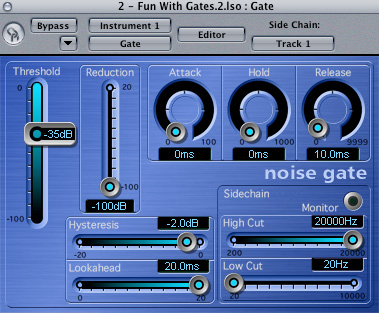

An Attack of 0, a Hold of 0, and a Release of only 10ms ensures that the gate will open and close quickly. We'll want the gate to close completely, so we set gain reduction to -100dB. This gives us a final setup something like this:

Step 7

For the combined result, you'll have something like this:

combined1.mp3

Note the audible difference when we simply adjust the Threshold to -30dB:

combined2.mp3

Step 8

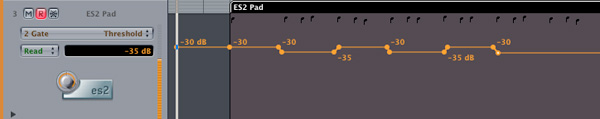

I'm fond of the first section of the first combined result, and the second section of the second combined result. The solution is to automate the Threshold parameter of the Noise Gate, adjusting the threshold back and forth from -35dB to -30dB at the appropriate time in the track.

Step 9

Finally, we'll throw in a bassline, a contrasting vocal line, and another drumloop to the final mix. Enjoy!

Listen to the finished product:

finalmix.mp3
