Introduction

As with previous tutorials, the best way to start is to break down each of the song’s elements, and start thinking about how it will be built back up. If you’re composing your own original work, then first sit down and think through your instrumentation.

In “Soul Survivor,” the primary elements are:

1. Drums: Kick, Clap, Ride Cymbal. I had a rather long debate with a colleague about which sound was used for the hi-hat, but he eventually convinced me (correctly) that it is a ride cymbal.
2. Strings: There are strings for the intro section that have almost a legato feel, then there are strings for the verses that also continue through the chorus.
3. Orchestral Hit: The orchestral hit that gives a little ‘roll’ feeling to the track.
4. Brass: There are two pieces to the brass here. There is a lower brass section that is used for both the chorus, and small little brass sections in the song, and then there is a higher pitched brass section that accompanies the chorus.
5. Pizzicato Strings: Prominent in southern-styled hip-hop, the pizzicato strings are barely noticeable but add a dynamic to the chorus.
6. Bells: The bells are probably the second most important element behind the strings. They help give the dark, melodic feel.

Step 1 - Setup + Drums

Surprisingly, of all the songs that I’ve remade so far, I was initially the farthest off tempo on this track. I knew that it was a bit of a slower, southern track, but on initial programming of the drums, I set the tempo at 96 BPM. When I added the ride cymbal in, the track sounded terrible so I had to reset the tempo. The final tempo that I stuck with is 83 BPM.

One of the trickier things with production is that the song tends to sound faster and faster as more elements are added. Regardless, here are the setup settings that I used:

• Tempo: 83 BPM
• Time Signature: 4/4
• Loop: On
• Quantize During Recording: On

Now, set up the track as always, by going to Create > MClass Mastering Suite Combi, and Create > Mixer 14:2.

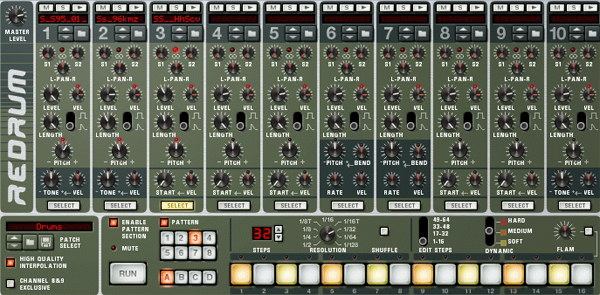

Next, it’s onto the drum set up. Go to Create > Redrum Drum Computer. Load up Drums.drp (and make sure the individual samples are loaded as well, there should be three). I made some adjustments to the patches to make them sound more like the song, which are viewable by loading the Drums patch and then just looking at the knobs that were adjusted.

However, another important addition still needs to be made, so let’s keep working. With your drum machine selected, go to Create > RV7000 Advanced Reverb. Now, we just put this reverb on all our drums, but we only want it on our kick drum, so we have to make some changes.

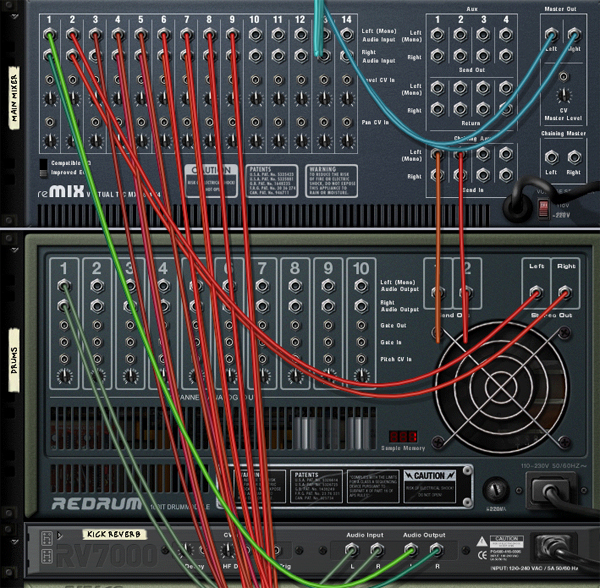

Hit ‘tab’ to flip the drum machine wiring around. You’ll see that the Redrum Stereo Out lines are now routed to the RV7000’s Audio Input, and the RV7000’s Audio Output is routed to the Mixer. We don’t want that, we only want the reverb on our kick drums.

Take the Stereo Out from the Redrum, and reroute it to the main Mixer (just pick Channel 2). You should now see two channels in the Mixer, one that says “RV7000”, and one that says “Redrum”. Now, take the left and right audio output from Channel 1 of Redrum, and reroute it to the Audio Input of the RV7000.

To sum up what we just did, we created an RV7000 Reverb. Redrum’s channels were automatically routed through the RV7000, which added reverb to all channels. However, we only wanted reverb on the drums, so we rerouted Redrum’s output back to the Mixer (how it was originally), and then selected only our kick channel to go through the Reverb.

Next, load up the AllWarmPlate.rv7 patch to apply the proper settings to the RV7000 Reverb.

That’s probably one of the hardest parts of the tutorial, so now that we’ve got that out of the way, let’s set up our drum patterns. There are 3 patterns used in this tutorial, but each builds on the next. Set the length to 32 steps, and the resolution to 1/32.

Pattern 1:

• Kick on 1, 7, 13, 21 (step 5 of the second 16).
• Clap on 9, 25 (step 9 of the second 16)
• No ride cymbal.

Pattern 2:

• Use pattern 1 above.
• Add ride cymbal on 1, 5, 9, 13 (for both sets of 16).

Pattern 3:

• Use pattern 2 above.
• Set the dynamic to soft, and add ride cymbal on 3, 7, 11, 15 (for both sets of 16).

Step 2 - Strings

There are two parts of strings that are needed here.

The intro is a common feature of songs that involve Konvict Music artists. It is presumably a ‘trademark style’ and it makes it relatively easy to identify Konvict songs. It usually involves strings, though there are tracks that use piano (“Change Up” by Fabolous & Akon, or “I Tried” by Bone-Thugz-N-Harmony would be examples).

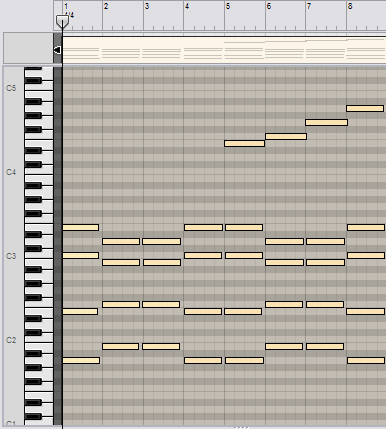

Go to Create > NN-19 Sampler, and load up the BigStringsThin.smp patch. I don’t believe I made any changes to the sound patch, although I might have tweaked the sustain. Regardless, now play the melody below.

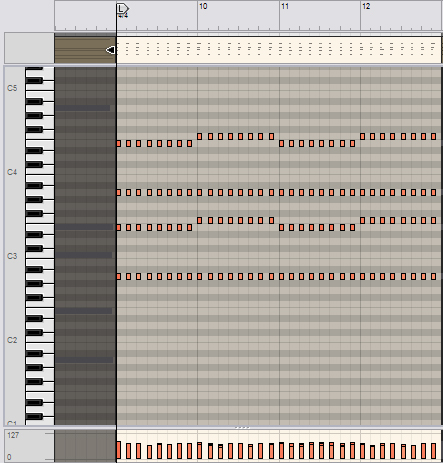

Now, using the same patch, let’s play the melody strings. It’s an orchestra “stab” feel, but this patch will work fine to emulate it. Play the melody line below, but make sure to keep the note velocity close to standard. Some human error is good, but if the sound is getting constantly louder or softer, it will be noticeable.

Step 3 - Bells

Alright, it’s now time to add the bells. This is the element that makes the song have a dark, melodic feel.

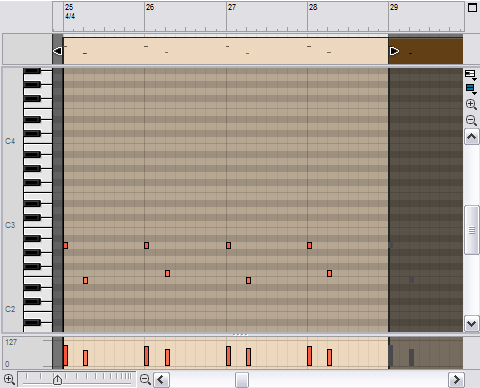

Go to Create > Subtractor Analog Synthesizer, and load up DreamVibes.zyp. Now, I made edits to the patch to make the bell sound more like the song. The bell needed a little less sustain, and a little more release, so I edited the Mod, Filter and Amp Envelopes accordingly. Play the rather simple melody seen below.

Step 4 - Orchestral Hit

Now, let’s create the Orchestral hit. Go to Create > NN19 Sampler, and load up BIGSTRINGS.smp.

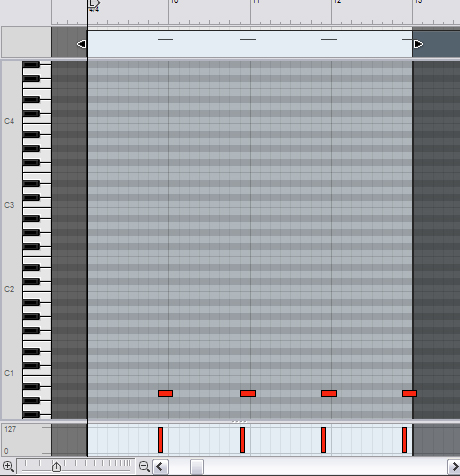

Play the one note line seen below. Note that it goes partially into the following clip, but that’s how it gets the ‘rolling’ feel to it.

Step 5 - Brass

For the brass, there are three parts that need to be completed.

1. The brass on the verses.
2. The lower chorus brass.
3. The higher chorus brass.

Let’s start with the brass on the verses (since the patch that it uses is also used for the lower chorus brass).
Go to Create >NN-XT Advanced Sampler, and load up Low Brass Section.sxt.

The way that this patch was created was by starting with the Brass Section stock patch from Reason.

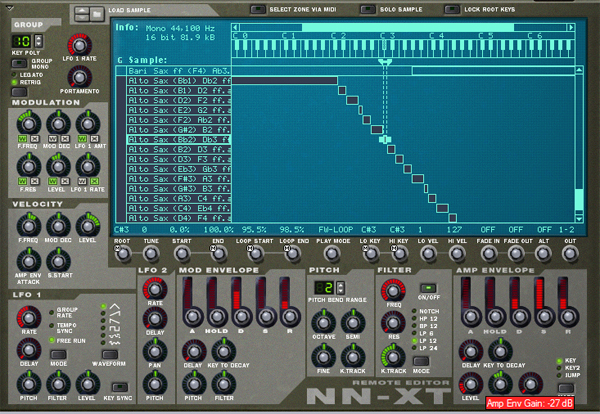

Then, clicking the little arrow by “Remote Editor” allowed editing of the section.

I lowered the Amp Envelope Level (see right hand corner), for the alto and baritone sax. When I created the Upper Brass, I raised the trumpet level.

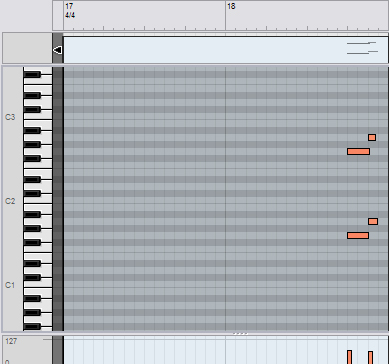

With that aside, let’s create the two sections for the lower brass. The first is just a little small section for the verses, seen below.

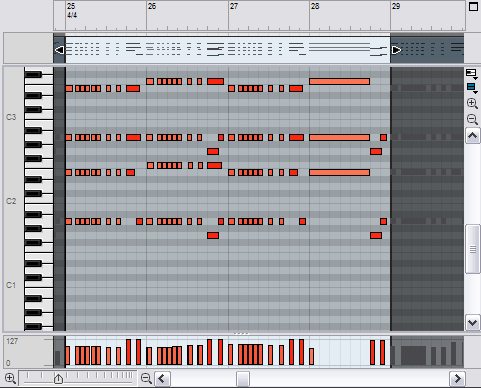

That is just the part that goes on the verses. Now, we’ll move onto creating the brass for the chorus. Using the same patch we already had loaded up, play the notes below. This section is pretty complex from a musical standpoint, and it will probably take a few attempts to get correctly.

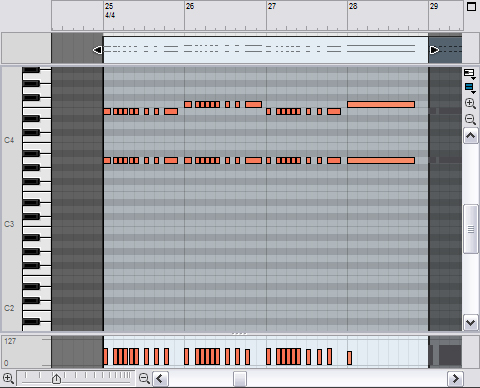

Okay, now we need to do the higher brass. Create another NN-XT sampler by going to Create > NN-XT Advanced Sampler and load up the Upper Brass Section.sxt. Now, play the section seen below.

Step 6 - Pizzicato Strings

Next up are the pizzicato strings. They are hardly noticeable in the final instrumental, but they add a little flavor to the song. Let’s start by creating two new NN-XT Samplers. In one, load up VCS Pizz.sxt, and in the other, load up VLN Pizz.sxt. One is a cello pizzicato, the other a violin pizzicato. Play the notes below for both instruments.

Step 7 - Song Structure

Now, it’s time to set up the final track. Each section we created above is simply layered on top of each other.
What we need to do is expand the track and set up the layout of the song. This is accomplished by listening through the original instrumental, and listening to the song structure and form. Here’s what the first two verses and choruses look like.

Conclusion + Wrap Up

Well, here’s the finished product of the third installment in the track remake series. Hopefully everyone learned something from this tutorial. All sounds and patches are included in the tutorial Play Pack.

You can hear the final product again here:

Audio clip: Adobe Flash Player (version 9 or above) is required to play this audio clip. Download the latest version here. You also need to have JavaScript enabled in your browser.

Please spread the tutorial to anyone who you think will gain something from it, and leave a comment if you enjoyed it. Also, if you have a request for a song that you’d like to see remade, let me know in the comments.

Special thanks to my friend Evan Warner for helping replay some of the sections of this song, and for listening to my endless rambling about sound selection.
