Using multiple microphones when recording guitar is a popular way to get two different characteristics out of your amplifier. By using two different microphones at two different positions you are capturing two different signals of the same performance, which you can then mix and match to create a great guitar sound.

But what if you don’t have two different microphones or even a guitar amplifier to mike up? The Amp Designer in Logic 9 is a versatile amp emulator which allows you to select what type of microphones you want to use, as well as how they are positioned in front of the cabinet. By using the Amp Designer we can recreate a similar effect to a multi-microphone recording by copying and inserting the Amp Designer on the same guitar track but using two different microphones and positions.

Let’s see what we can accomplish with faking a multi-mic recording technique.

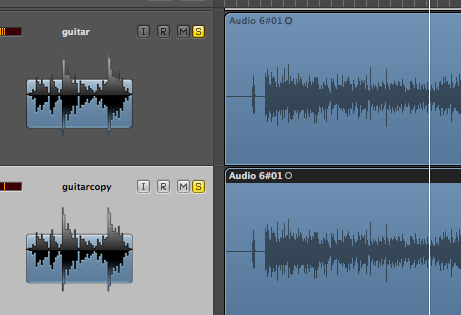

Step 1: Copy the Track

Usually, when we are treating the same track with different things we use auxiliary sends and returns. But since we are going to insert a different Amp Designer on each track we don’t want one Amp Designer interfering with the other. Therefore we are copying the guitar track below to another channel.

No tricks here. Of course, we could move the copied track a few milliseconds ahead to get an A.D.T. feel but that’s not what we’re going for right now. But by all means try that out as well.

This is the audio we’re using. This is a DIed acoustic guitar into a Lexicon Lambda interface.

Audio clip: Adobe Flash Player (version 9 or above) is required to play this audio clip. Download the latest version here. You also need to have JavaScript enabled in your browser.

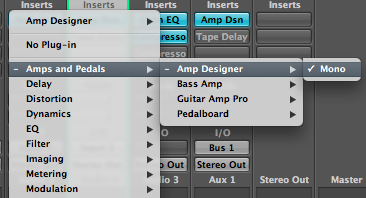

Step 2: Insert the Amp Designer

Insert the Amp Designer on the first track and tweak it until you are satisfied with the sound. I’m using a mock Vox AC30 type sound, or the British Amp with the British 2×12 cabinet. On the first track I have selected a condenser and positioned it so that it is facing the center of the cone.

This is what only the condenser sounds like. A little harsh since it’s positioned in the center, and due to the nature of the condenser has a full range sound that is a bit too dominant in the higher frequencies.

Audio clip: Adobe Flash Player (version 9 or above) is required to play this audio clip. Download the latest version here. You also need to have JavaScript enabled in your browser.

Step 3: Change the Position on Another Amp Designer

I’m inserting another Amp Designer, with the same settings as the one before. A British amp with a British 2×12 cabinet. The only thing that I’m changing is that I’m selecting the microphone source to be a dynamic and I’m placing it on the edge of the cone.

This is what the exact same track, with the exact same amplifier sounds like.

Audio clip: Adobe Flash Player (version 9 or above) is required to play this audio clip. Download the latest version here. You also need to have JavaScript enabled in your browser.

A little different, a little warmer and not as dominant in the high frequencies.

Step 1: Merge the Two Sounds

Now by playing both sounds at the same time we get a fuller and warmer sound. By joining these two microphone positions together we get two different sounds that compliment each other from the same performance.

Here is the end result.

Audio clip: Adobe Flash Player (version 9 or above) is required to play this audio clip. Download the latest version here. You also need to have JavaScript enabled in your browser.

Conclusion

When you are stuck with limited resources you can turn to fake mixing tricks like this. Of course it’s not the same as if you would record an amplifier with two great microphones through two great preamps, but can serve you well in a pinch. With some more mixing, EQing, compressing and panning, you could create something even better.

You could take it even further, like I said before and add some delay for an artificially double tracked sound. By only using the different mic placements on the Amp Designer we are able to recreate, although artificially, the tried and tested techniques of multiple microphone recordings with great results.
